Next Generation
ISO 15118-20 ELECTRIC VEHICLE COMMUNICATION CONTROLLER
Fully Customizable To Your EV Needs
Total Charging Stack — ISO 15118-2, ISO 15118-20, SAE J3105, DIN SPEC 70121
Functional Safety — developed to ISO 26262 ASIL-B
Vehicle to Grid (V2G) — bidirectional power transfer according to ISO 15118-20 standard
ISO 15118-20 NEXT GENERATION ELECTRIC VEHICLE COMMUNICATION CONTROLLER
As of June 2026, SMG’s Next Gen EVCC passed the extensive live interoperability ISO 15118-20 testing gates on high-power Heliox depot infrastructure. Our solution is ready for the challenges of grid interaction and post-quantum cryptographic security. SMG’s Next Gen EVCC offers flexible, high-speed vehicle integration through either CAN-FD, CAN-XL or Automotive Ethernet (10BASE-T1S) lines. Built to meet ISO 26262 ASIL-B functional safety standards, the Next Gen EVCC features a dedicated EdgeLock® Secure Enclave for certificate isolation and a hardware Cortex-M33 Safety Island for secure overcharge protection. Enclosed in a compact, vibration-resistant, IP67-rated cast aluminum housing, the EVCC functions natively on 9V–36V industrial electrical systems. Built with state-of-the-art processor, memory, post-quantum cryptography and software stack, this device will be supported for 10+ years without end-of-life concerns.
EVSE Charging Partners
SMG’s EVCC has carried out millions of charging sessions with supply equipment providers ABB, Siemens, Heliox, Delta, Chargepoint, Optigrid, BTC, and Kenpower. SMG can support integration with other charging partners at your request.
NEXT GEN EVCC FEATURES & SPECIFICATIONS
| FEATURE | SPECIFICATION | IMPLEMENTATION |
|---|---|---|
| CCS (Combo 1,2) |
DIN SPEC 70121, ISO 15118-2, SAE J3105 |
Implemented |
| CCS (Combo 1,2) Plug & Charge | ISO 15118-20 | December 2026 |
| AC Charging |
SAE J1772, |
Implemented |
| Pantograph Charging |
ISO 15118-20, SAE-J3105/1 |
December 2026 (Completed testing at Heliox, further field testing at ABB partner in October 2026) |
| Wireless (Option) | Wi-Fi 4 – 2.4 GHz + 5 GHz | Implemented |
| CAN |
1 x ISO 11898-CAN bus, |
Implemented |
| CAN-FD (Option) | ISO 11898-1:2015 | January 2027 |
| CAN-XL (Option) | ISO 11898-1:2024 | January 2027 |
| Automotive Ethernet (Options) |
IEEE Std 802.3cg-2019, |
January 2027 |
| Cryptography | TLS 1.3 PQC (post quantum cryptography) | Implemented |
| Security Certificate Handling | Hubject Ecosystem member, support for OEM certificate chains, and contract certificate and provisioning certificate processes | December 2026 (Beta Program Currently Onboarding New OEMs) |
| IP Rating | IP67 | Implemented |
| Input Voltage | 12V or 24V | Implemented |
| Normal Power Consumption | 3W | Implemented |
| Sleep Power Consumption | 12 mW | Implemented |
| Digital Outputs |
2x high power outputs (12V or 24V); |
Implemented |
| Contactor Outputs | H-Bridge output, 5A | Implemented |
| LED | 3 LED (Current Limited) | Implemented |
| Digital Inputs | 2 inputs, 24V & 12V comatible | January 2027 |
| Temperature Sensors | 3x PT1000 inputs | Implemented |
| Contactor Feedback | 2 Contactor Feedback Pins | Implemented |
| PLC | Lumissil HomePlug Green PHY (HPGP) | Implemented |
| Communication Wires |
CP (Control Pilot), |
Implemented |
| Inlet Locking | Inlet Lock | Implemented |
| Temperature Range | -40°C to 85°C | Implemented |
| Enclosure | SMG Heavy Duty Die Cast Metal EVCC Enclosure | Implemented |
| Dimensions | 5.5" x 8.11" x 1.8" | Implemented |
| Functional Safety | ISO 26262 ASIL-B | 2028 |
| Processor (Options) | NXP i.MX 94/95 series | July 2028 |
| Memory | LPDDR5 | July 2028 |
| Secure Enclave | NXP EdgeLock® Secure Enclave | July 2028 |
SMG’S EVCC CATALOG

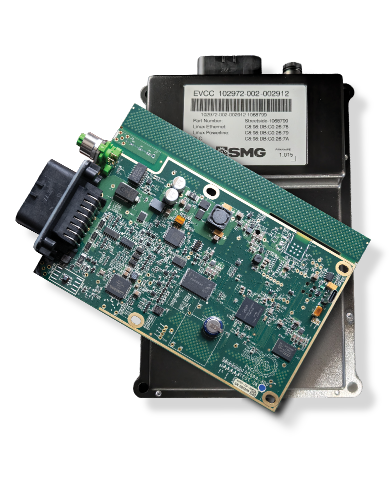

Legacy Electric Vehicle Communication Controller
SMG’s Legacy EVCC is a field-proven charge controller that has served as the baseline charging gateway for New Flyer and MCI since 2021. Built to manage standard ISO 15118-2, DIN SPEC 70121 and SAE J3105 protocols, it has adapted seamlessly to changing demands for power and capabilities over the past five years. The Legacy EVCC utilizes the NXP i.MX 6 applications processor paired with a low-power ARM Cortex-M0 co-processor dedicated to physical layer timing. The system operates on a standard Linux platform, backed by legacy DDR3 memory. Vehicular data routing is managed via dual-channel standard SAE J1939 CAN networks operating at up to 500 kbps to communicate with various customers’ Battery Management Systems.
SMG EVCC Models
| LEGACY EVCC | NEXT GEN EVCC | MEGA EVCC | |
|---|---|---|---|
| Standards |
ISO 15118-2, DIN SPEC 70121, SAE J3105 |
ISO 15118-2, ISO 15118-20, DIN SPEC 70121, SAE J3105, TLS 1.3 |
A leap forward in charging capability. This controller will manage automated connection sequences, continuous liquid-cooled thermal tracking, and automated coupling alignment. |
| Processor | NXP i.MX 6 | NXP i.MX 94/95 series | |
| Memory | LPDDR3 | LPDDR5 | |
| Secure Enclave | NXP CAAM | NXP EdgeLock® | |
| Available Dates | Ready to order | July 2028 | December 2028 |
THE SMG ADVANTAGE
Your Benefits When Working With SMG
Fully customizable to your vehicle needs including, capabilities, enclosure, and connections
North American based technical team for rapid response by phone, virtual, or on-site
Fully engineered and manufactured in North America
Capable of supporting low to high volume requirements
EVCC-focused manufacturer with existing 10+ year supply and service commitments
SMG provides a device that is qualified for harsh environments and is up to date with the latest charging protocols, along with the engineering support required to take an EV from concept to charging. With SMG you will get direct access to the engineers who designed, tested, and built the EVCC, with the ability to tailor it to your specific needs.
SMG provides best-in-class support for our devices. Our application specialists work with your engineers throughout the product lifecycle to ensure ongoing integration to evolving industry standards and EVSE suppliers.

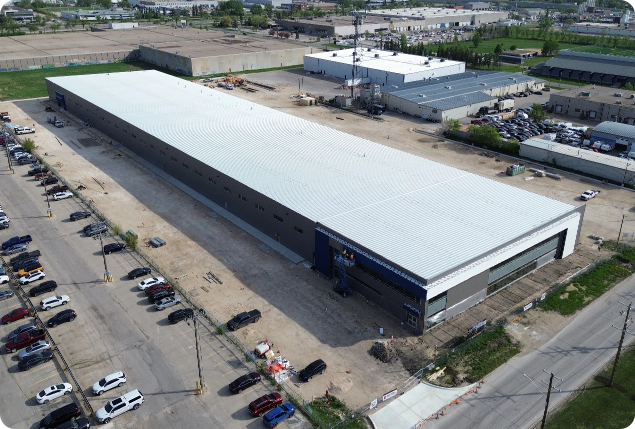

SMG Headquarters

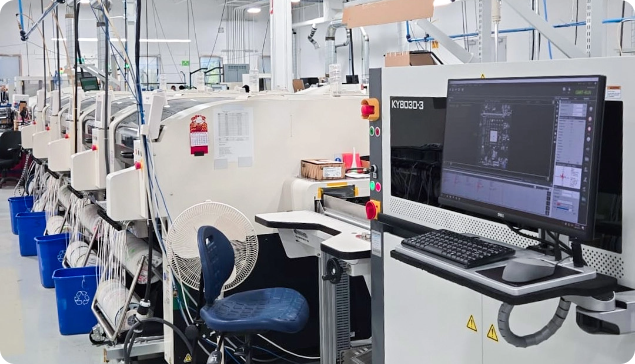

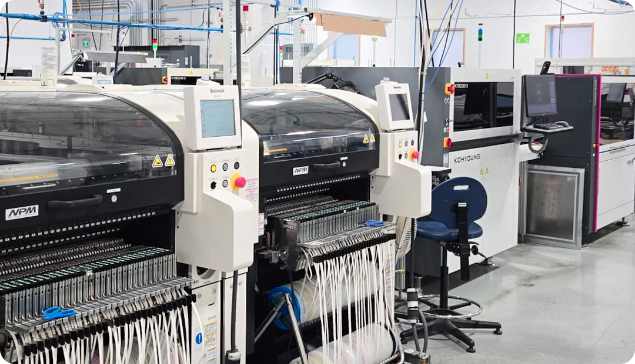

In May 2027, SMG will be moving to a state-of-the-art, 140,000 square-foot facility, featuring the latest in SMT manufacturing with Panasonic’s NPM-GW. This autonomous high-capacity pick and place machine integrates with automatic quality and data feedback from in-line Koh Young solder paste inspection and 3D AOI systems paired with electronic component humidity storage and floor life tracking. SMG will be able to manufacture defect-free with speed and precision.
